Roller Shutter Doors
CRF Sections is the UK's largest dedicated supplier of components for security roller shutter doors, whether for planned installation or emergency repair. From our base in the heart of the Midlands we provide quality products at competitive prices to customers throughout the UK and Europe.
We supply a wide range of laths (including insulated lath), plus an extensive selection of guides, angles, rails and ancillaries.
Our specialist team has extensive industry experience across a wide range of applications and sectors. We're highly qualified to recommend the products that will best meet your needs - and your budget.
Please contact us with your specific requirements.
We manufacture components 'in house' for a wide range of roller shutter doors, and also offer a bespoke manufacturing service to provide solutions to your specifications.
We also stock shutter door accessories, including everything from tubes and springs to locks and brush strips - to suit numerous commercial and industrial applications.

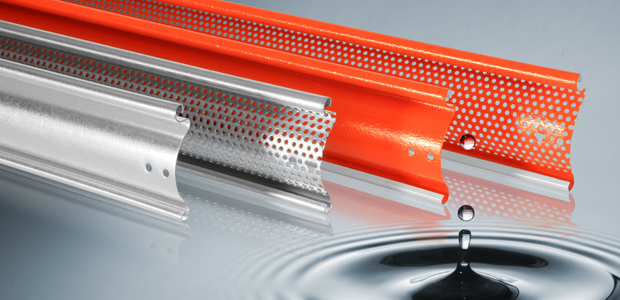

2" Flat Lath
For use in smaller applications such as security doors or curtains, our 2” Flat Lath is available in Galvanised, Stainless Steel or Plastisol finishes and may be supplied solid or perforated to allow for 30% vision through the lath. We can also punch the lath to order with 125mm x 25mm rectangular slots on a 150mm pitch, to a choice of ‘Brick-Bond’ or ‘In-Line’ patterns. Fully supported by a comprehensive range of accessories.

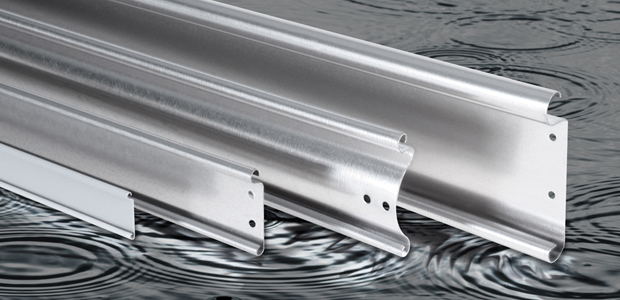

3" Traditional Lath
For use in general roller-shutter applications. Fully supported by a comprehensive range of accessories. Where punching is available, we can punch the lath to order with a choice of slots on a ‘Brick-Bond’ or ‘In-Line’ pattern.
Available in Galvanised, Stainless Steel or Plastisol coated finishes, and may be supplied solid or perforated to allow for 30% vision through the lath. We can punch the lath to order with 152mm x 25mm rectangular slots on a 203mm pitch.
3" Traditional Lath (cont'd.)
Available in Galvanised, Stainless Steel or Plastisol coated finishes, and may be supplied solid or perforated to allow for 30%, 40% or 50% vision through the lath. We can punch the lath to order with either a 152mm x 25mm rectangular slot on a 203mm pitch, or a 76mm x 47mm slot on a 88.9mm pitch.
Available in Galvanised or Stainless Steel finishes, and may be supplied solid or perforated to allow for 30%, 40% or 50% vision through the lath.
All guide channels can be supplied in galvanised or self-colour mild steel.
T-section Bottom Bar
50mm deep, light or heavy gauge galvanised T-section bottom bar.
L-Section Bottom Bar
Galvanised L-section bottom bar is available outwardly facing.
Wind Anchor Guide Channel
65mm deep channel is available either galvanised or self-colour mild steel finish. 100mm deep channel available in galvanised finish.
Our 3mm angle sections can be supplied in a range of sizes from 30mm x 30mm to 125mm x 75mm, self-colour or galvanised mild steel. Also, 5mm angle sections available in sizes from 75mm x 50mm to 100mm x 50mm.
We offer an extensive range of high quality shutter door springs manufactured in our own workshops.

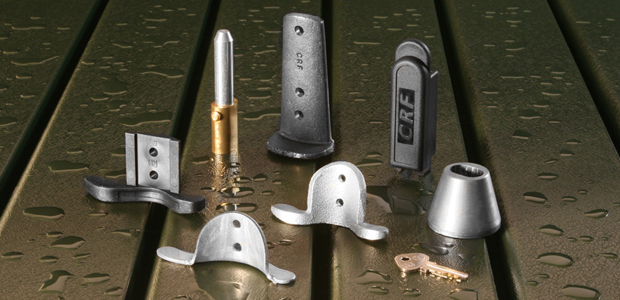

A wide range of end locks is available manufactured from plastic, zinc plated pressed steel, or cast steel.
Tube, barrel lath, rubber seal, polystyrene inserts, endplates etc etc. If you need it, please just ask us for it.
The items shown on our website represent a small selection of the extensive range of roller shutter parts and accessories available. Please contact us to discuss your specific requirements.
