Product Range
Insulated Doors
For use in applications where you need to keep the heat in, and the cold out.

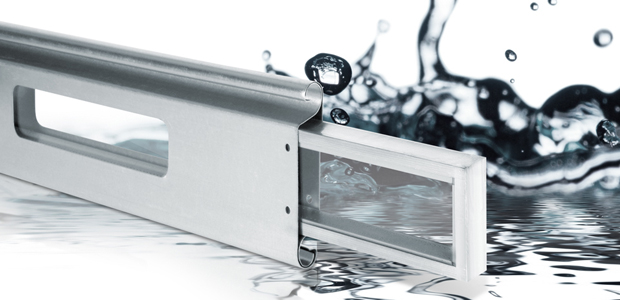

This 100mm (4”) twin-skinned interlocking lath is a highly effective and environmentally friendly solution. Available in Galvanised, Stainless Steel or Plastisol coated finishes (or a combination), we can vision punch the lath to order with 200mm x 40mm rectangular slots on a 260mm pitch – in either a ‘Brick-Bond’ or ‘In-Line’ pattern. Fully supported by a comprehensive range of accessories, including Glazing Panels and CFC-Free Insulation Strips.
This product may be supplied pre-assembled or in kit form for self assembly.
Product Range
New! - Envirofoam Insulated Lath
Foam-filled for the ultimate in insulation and rigidity.
Our new and unique pre-injected foam-filled insulated lath offers maximum insulation for industrial & commercial premises.
The revolutionary manufacturing process and filling method permanently bonds the surfaces together and prevents the formation of un-insulated pockets - which can occur with similar products - to provide the best energy efficiency on the market.
Product Range
New! - Envirofoam Insulated Lath (cont'd.)
Plus, the 100mm twin-skins are chemically bonded, offering up to 170% increased rigidity and mechanical strength in addition to their exceptional thermal properties.
Available in a range of finishes, we can vision punch the lath to order with 200mm x 40mm rectangular slots on a 260mm pitch – in either a ‘Brick-Bond’ or ‘In-Line’ pattern and with glazing panels pre-installed. Fully supported by a comprehensive range of accessories.
This product may be supplied pre-assembled or in kit form for self assembly.
Product Range
New! - Envirofoam Insulated Lath (cont'd.)
Key benefits of Envirofoam
- Derived from rapeseed oil - a sustainable source.
- CFC free.
- Consistent foam filling ensures no air pockets – and more effective insulating properties.
- U Value of 0.793 W/m2K in accordance with BS EN ISO 6946 and BS EN ISO 1077-1.
- Wind tested in accordance with BS EN 13241-1 (clause 4.4.3).
- Significant reduction in assembly and repair time.
- Available in 200 micron Plastisol, Galvanised, Stainless Steel and Aluminium
- Can be supplied as factory pre-assembled curtains.
- Can be supplied punched and glazed.
Please contact us with your specific requirements.
